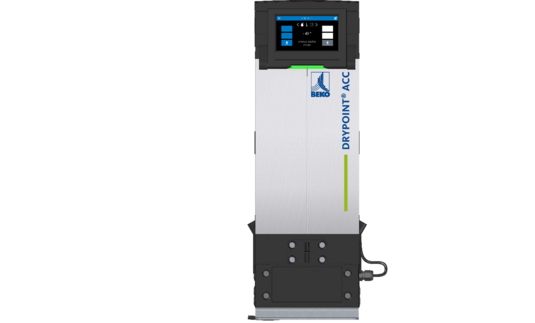

DRYPOINT ACC – Compact Adsorption Dryer for Demanding Compressed Air Applications
The new DRYPOINT ACC is designed for industrial environments that demand exceptional air quality, process reliability and energy efficiency – even in tight installation spaces.
With nine performance sizes for flow rates from 5 to 100 m³/h and two equipment variants, DRYPOINT ACC offers the right solution for a wide range of applications – from retrofits to point-of-use compressed air drying.
- Stable pressure dew point down to –40 °C at nominal flow, down to –70 °C at <70% load
- Energy-efficient operation with compressor synchronization and dew point control
- Reliable drying even under fluctuating loads or pressures
- Compact footprint – flexible installation (vertical/horizontal, floor/wall)
- Easy maintenance with universal cartridge system
- ISO 8573-1:2010 Class [1-2:1-2:2] compliant air quality
DRYPOINT ACC is the right solution for anyone who needs space-saving, energy-efficient drying – with no compromise on air quality.
Pascal Böhm, Product Manager
Why the DRYPOINT ACC makes a difference
The DRYPOINT ACC is ideally suited for:
- Point-of-use compressed air drying
- Machinery and plant engineering
- Food, pharmaceutical and packaging industries
- Retrofitting in existing systems
- Installations with limited space or high quality demands
Consistent Air Quality with Certified Reliability
The DRYPOINT ACC ensures a stable pressure dew point of –40 °C at nominal flow, and down to –70 °C when operated below 70 % capacity – fully compliant with ISO 8573-1:2010, Class [1-2:1-2:2].
This reliably protects your production from moisture, corrosion and costly downtime.
Drying Only When Needed – Efficient by Design
As a cold-regenerated adsorption dryer, the DRYPOINT ACC operates alternately between two desiccant-filled cartridges. Regeneration is pressure-reduced and uses purge air – only while the compressor is running.
The integrated compressor synchronization prevents unnecessary purge air consumption during system idle times.
In the Premium version, a dew point sensor continuously monitors load conditions and controls regeneration on demand – delivering maximum efficiency with minimal air loss.
Maximum Installation Flexibility – Ideal for Tight Spaces
The DRYPOINT ACC can be mounted horizontally or vertically, on the wall or floor. All brackets are included, as well as the option to mount the pre-filter separately.
Especially suitable for:
- Retrofitting in existing systems
- Decentralized drying at point-of-use
- Space-constrained compressed air stations
From straightforward to smart: your choice of control
Standard version
For basic operation and reliable performance – ideal when drying is only needed during compressor runtime.
Operating mode: Intermittent – only active when compressor is running
Control: LED status indicator
Regeneration: Time-controlled
Energy efficiency: Reduced air consumption thanks to compressor synchronization
Alarm contact: Potential-free contact
Expandability: -
Filtration: Pre-filter + BEKOMAT
Mounting options: Floor/wall, vertical/horizontal – flexible installation
Maintenance & service: Cartridge replacement from above, uniform cartridge type
Premium version
The smart upgrade for those who want full control, energy savings and detailed system insights.
Operating mode: Intermittent with smart on-demand regeneration

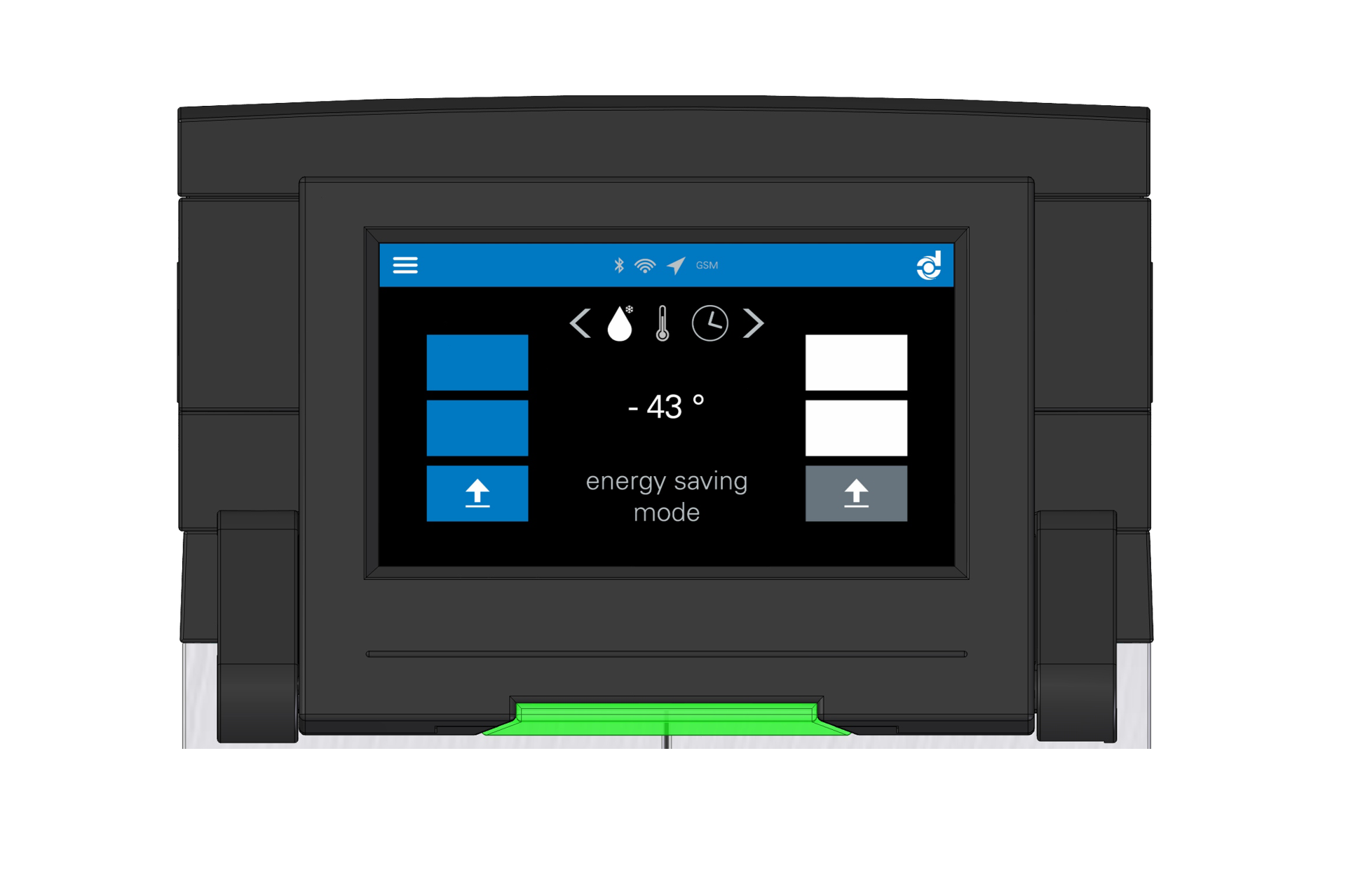

Control: Color touch display – intuitive and precise
Regeneration: Demand-controlled via integrated pressure dew point sensor
Energy efficiency: Optimal energy savings thanks to demand-based control
Alarm contact: Potential-free contact
Expandability: Additional analog inputs for external signals
Filtration: Pre- & after-filter + BEKOMAT for highest air quality
Mounting options: Floor/wall, vertical/horizontal – flexible installation
Maintenance & service: Cartridge replacement from above, uniform cartridge type
Find the right DRYPOINT ACC for your application
Whether you're looking for a compact entry-level model or a fully equipped high-performance solution – the DRYPOINT ACC is the perfect fit.
005
010
015
025
035
050
065
080
100
Frequently asked questions
Why choose an adsorption dryer instead of a refrigeration dryer?
The DRYPOINT ACC achieves a stable pressure dew point of up to –40 °C (optionally –70 °C), making it ideal for sensitive industrial applications where refrigeration dryers fall short – such as in the food, pharma or electronics industries. It complies with ISO 8573-1:2010, Class [1-2:1-2:2].
Adsorption dryer or membrane dryer – what’s the difference?
Membrane and adsorption dryers serve different purposes.
Membrane dryers are extremely compact, require no power, and are ideal for small-scale or mobile applications.
The DRYPOINT ACC is the better choice when you need higher flow rates, a defined dew point, and stable performance under varying loads – ideal for demanding industrial environments.
What’s the difference between the Standard and Premium version?
Both versions ensure reliable and efficient drying.
The Premium version additionally features:
- Dew point control (demand-based regeneration)
- Live dew point display via touch screen
- CLEARPOINT after-filter included
- Expandable analog inputs for system integration
Highly efficient:
The dryer operates intermittently, only when the compressor is active.
Compressor synchronization prevents unnecessary purge air use during idle periods.
In the Premium version, dew point control ensures regeneration only when needed – saving energy and costs.
Is the dryer suitable for confined spaces?
Yes – the DRYPOINT ACC was designed with flexibility in mind. It can be:
- Mounted vertically or horizontally
- Installed on the floor or wall
- Equipped with a remote filter installation
Perfect for retrofits, tight system layouts or point-of-use integration.
The DRYPOINT ACC consistently meets ISO 8573-1:2010, Class [1-2:1-2:2] thanks to its integrated filtration system.
You get dry, clean compressed air – reliably and safely.
How complex is maintenance?
Maintenance is quick and easy:
- Only one universal cartridge type for all sizes
- Top access for easy replacement
- No special tools required
This saves time and reduces spare parts inventory.
Each dryer includes a potential-free alarm contact for system integration.
The robust design and pre-tensioned cartridges ensure reliable operation even under changing load conditions.
