BEKOKAT

Catalytic Converter

Catalysis technology for oil-free compressed air

ISO 8573-1 Class 1 or better Highest process reliability Certified safety

Tried and tested catalytic converter

Catalytic converter technology for oil-free compressed air: BEKOKAT

Highest process reliability through continuous process monitoring

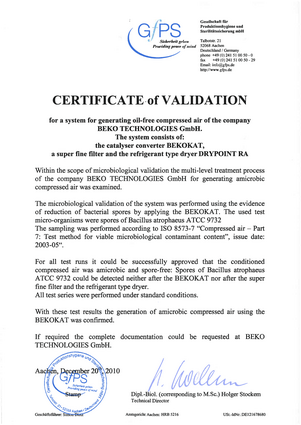

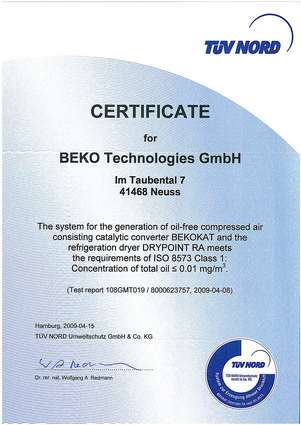

Do you not want to make any compromises in your production with regard to compressed air quality? Do you want to make sure at all times that the compressed air complies with ISO class 1 or better, i.e. that it contains no oil or germs? Then the TÜV-certified and by neutral institutes validated catalytic converter BEKOKAT is an interesting solution.

Video

Function of BEKOKAT

BEKOKAT makes achievable constantly oil-free compressed air with a maximum residual oil content of a barely measurable 0.001 mg/m³ of compressed air. A quality level which is required in particularly demanding production processes.

At a glance

Advantages of Catalysis in Compressed Air Treatment

Permanently oil-free

Permanently oil-free – even under fluctuating conditions

The BEKOKAT catalytic converter oxidizes all hydrocarbons in compressed air – gaseous and aerosol-based – into CO₂ and water. This ensures consistent Class 1 compressed air quality according to ISO 8573-1, regardless of variations in oil carryover or ambient air conditions.

No saturation

No saturation, no filter breakthrough

Unlike conventional activated carbon filters, which degrade over time and pose a risk of breakthrough, the catalytic process is purely chemical – with no wear, no material consumption, and no performance loss. The reaction remains effective and stable over the entire service life.

Maximum process reliability

Maximum process reliability for sensitive applications

The output quality of the air remains stable – even in demanding environments. This guarantees maximum process security, especially in industries where product integrity is critical, such as pharmaceuticals, medical technology, and food production.

Sustainable and cost-efficient

Sustainable and cost-efficient

No disposable materials, no frequent maintenance, no hazardous waste: BEKOKAT not only reduces your operating costs, but also supports your sustainability goals by eliminating unnecessary resource consumption.

In highly sensitive applications

ISO 8573-1 Class 1 or better

In highly sensitive applications, conventional compressed air preparation has technical and economic limits when it comes to particularly high requirements on the residual oil content of the compressed air. The catalytic converter BEKOKAT sets new standards in this respect by completely converting hydrocarbons into carbon dioxide and water through total oxidation on the catalyst. The process thus consistently produces oil-free compressed air with a maximum residual oil content of hardly measurable 0.003 milligrams per cubic meter. With this performance, the BEKOKAT units exceed the residual oil content of 0.01 mg/m³ specified in Class 1. In other words, a quality that is required in particularly demanding production processes, e.g. in the food, pharmaceutical, automotive and electronics industries.

Can be retrofitted in existing plants
The BEKOKAT unit is installed as a stand-alone solution behind the compressors or on the consumption point installed.

Overview

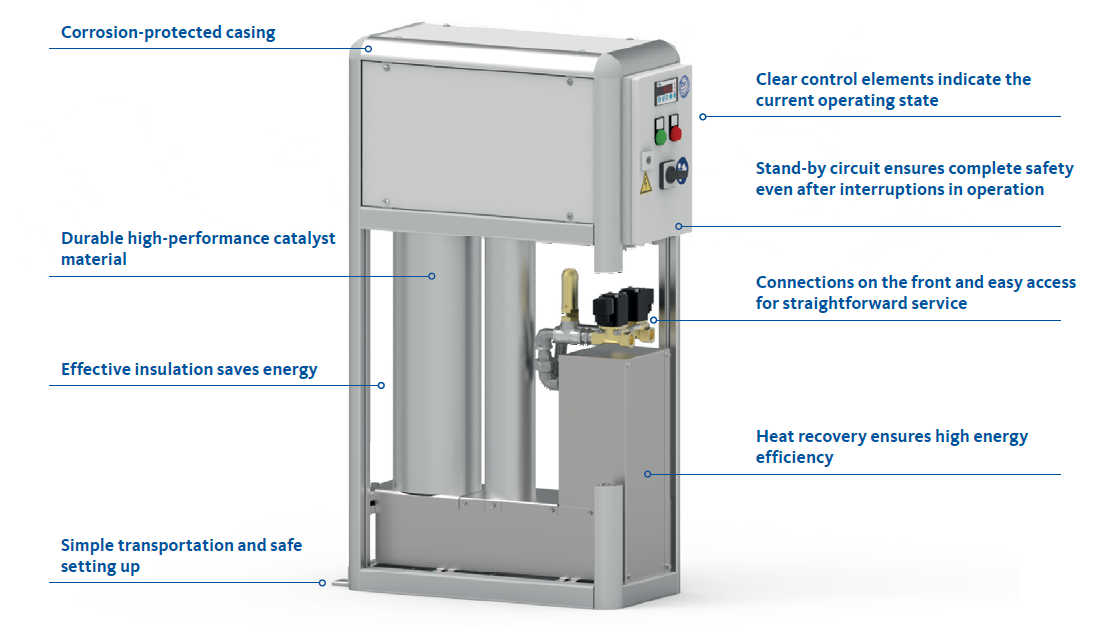

Product features

Patented catalytic technology

Patented catalytic technology

At the heart of the BEKOKAT lies a unique catalytic reactor that operates at high temperatures to completely oxidize all hydrocarbons – both gaseous and liquid-bound. Unlike filter-based systems, which merely retain or separate contaminants, the catalyst chemically transforms oil into harmless carbon dioxide and water vapor. This ensures total purification of the compressed air, even when the incoming air is heavily oil-laden or exposed to challenging environmental conditions.

  • Complete oxidation of oil vapors and aerosols
  • ISO 8573-1 Class 1 air purity, regardless of inlet conditions
  • Proven technology used in critical applications worldwide
Long service life, minimal maintenance

Long service life, minimal maintenance

BEKOKAT is engineered for durability and operational simplicity. Since the catalytic core does not degrade or become saturated like conventional filters, the unit operates for extended periods with minimal maintenance. There are no consumables to replace, no disposal of contaminated media, and no frequent service interruptions – significantly lowering total cost of ownership (TCO) over the product’s life cycle.

  • No activated carbon replacement
  • Minimal downtime and operating effort
  • Ideal for continuous 24/7 industrial use
Optional oil content monitoring for full transparency

Optional oil content monitoring for full transparency

To ensure full process transparency and traceability, BEKOKAT can be combined with an integrated oil content measurement device. This continuously monitors the residual oil content downstream of the system and provides real-time data. Such monitoring is especially valuable in industries that demand validated air quality and documentation for audits or compliance certifications.

  • Real-time oil measurement
  • Continuous process monitoring and alerting
  • Supports quality assurance and audit requirements (e.g., GMP, HACCP)
Intake air and hydrocarbons

Independent of ambient conditions

The intake air for compressed air generation is usually contaminated with hydrocarbons. Even with oil-free compressed air generation, a treatment solution is therefore required. The catalytic converter BEKOKAT reliably cleans the compressed air and thus constantly provides oil-free compressed air better than class 1 according to ISO 8573-1. The catalytic compressed air treatment breaks down all hydrocarbons in the compressed air into carbon dioxide and water. Due to process temperatures above 150°C, the escaping compressed air behind the BEKOKAT is free of germs, bacteria and viruses.

Independent of ambient temperature, air humidity and oil input concentration

Technical data

Sizes at a glance

Technical data
Volume flow rate* (m³/h)
Max. operating pressure [g]
Power supply
Install. Performance (kW)
Average Performance (kW)
Connection
Weight (kg)
Material number
CC-018
18
11
230 V, 50 Hz, 1 Ph
0.58
0.20
61
4042993
iCC-060
60
16
230 VAC, 50 Hz, 1 Ph, PE
1
0.52
R1
140
4046741
iCC-120
120
16
230 VAC, 50 Hz, 1 Ph, PE
1.64
0.86
R1
175
4046742
iCC-180
180
16
400 VAC, 50 Hz, 3 Ph, PE
2.64
1.33
R1
200
4046743
iCC-360
360
16
400 VAC, 50 Hz, 3 Ph, PE
5.14
2.17
R1½
325
4046744
iCC-720
720
16
400 VAC, 50 Hz, 3 Ph, PE
8.74
3.26
R2
530
4046475
iCC-1200
1200
11
400 VAC, 50 Hz, 3 Ph, PE
13.84
3.75
R2½
742
4046746
Why is BEKOKAT safe to use in demanding processes?

Process safety features

Temperature Guard

Temperature Guard (Upper Reactor Monitoring)

  • Continuously monitors the upper reactor temperature.
  • Automatically shuts off the heating if the preset limit is exceeded.
  • Restarts heating when the temperature drops below the threshold.
  • Features an auto-reset function with a notification on the control display.
Temperature Limiter

Temperature Limiter (Lower Reactor Monitoring)

  • Monitors the lower area of the reactor.
  • Interrupts and resumes heating based on defined temperature limits.
Safety Valve

Safety Valve

  • Located at the inlet of the plate heat exchanger.
  • Opens automatically when pressure exceeds the preset value, ensuring protection of downstream components.
Pressure Relief Valve

Pressure Relief Valve

  • Opens automatically in a fault
Safety features

Control system

Fail-Safe Features in the Event of a Hazard

If the reactor temperature exceeds 200 °C:

  • The inlet and outlet valves close automatically.
  • The pressure relief valve opens in a controlled, time-phased sequence.
  • This prevents additional hydrocarbons from entering, halts the chemical reaction,
    and allows the system to cool down safely.
SIEMENS SPS Control System

Reactions to exceeded safety limits:

  • System switches to safe modus
  • Alarm is triggered with red color on display
  • User is informed via display message
