Mobile data recording METPOINT® BDL portable

The mobile METPOINT BDL portable data logger enables rapid and simple measurement data recording and evaluation of the compressed air quality directly on site. It is a universally implementable hand-held measuring device with an integrated data logger for recording measurement data such as e.g. consumer and through flow measuring, pressure and vacuum measuring, temperature measuring as well as residual humidity and dew point measuring and it translates the process data into clear, unambiguous statistics and graphics. Up to 100 million measurement values with the date and measurement location name can be saved and then represented graphically in coloured measurement curves.

One can see quality – one just needs to record it

Utilising a universal sensor input ensures a simplified connectivity to all conventional industrial transducers. Intuitive operation is executed via the easy to read out 3.5” touch screen. This high-performance, but still compact, measuring device has other additional features such as service-friendly data recording via integrated data logger, coloured display for measurement curves and data interpretation. All measurement values can also be comfortably transferred with an USB memory stick to a PC for uncomplicated, additional evaluation by utilising the METPOINT READER SW201 evaluation software. You can then comprehend the measured values simply and in real time and, when necessary, implement the required measures immediately. You and your staff also have a complete localised overview and everything at your fingertips with the METPOINT BDL portable.

Advantages of METPOINT® BDL portable

Technical data METPOINT® BDL portable

Colour display 3.5” touch panel, TFT transmissive
Interfaces USB interface, RS485, Ethernet optional
Power supply for sensors Output voltage: 24 VDC ± 10%
Output current: 120 mA in continuous mode
Electrical supply: Internal rechargeable Li-ion accumulators, charging time approx. 4 h
METPOINT BDL portable, continuous mode > 4 h
Depending on power consumption for external sensor
Power supply unit 100 ... 240 VAC/50 ... 60 Hz, 12 VDC – 1A
Safety Class 2; only for use in dry rooms

* Refer to downloads for additional performance data: Product Folder

Downloads METPOINT® BDL portable

Competence in Measurement
Product Range
4 MB
METPOINT BDL portable
Brochure
270 KB
METPOINT BDL portable
Manual
4 MB
Firmware METPOINT BDL portable
Software
1 MB
Settings SD23 METPOINT BDL
Software
2 KB

Complementary products:

METPOINT BDL front

METPOINT® BDL | BDL compact

Stationary data logging for compressed air and gas applications. The process can be archived on a long-term basis and alarms can be forwarded to higher-level systems.

Sensor teaser

Sensor technology

for the precise measurement of all influencing variables

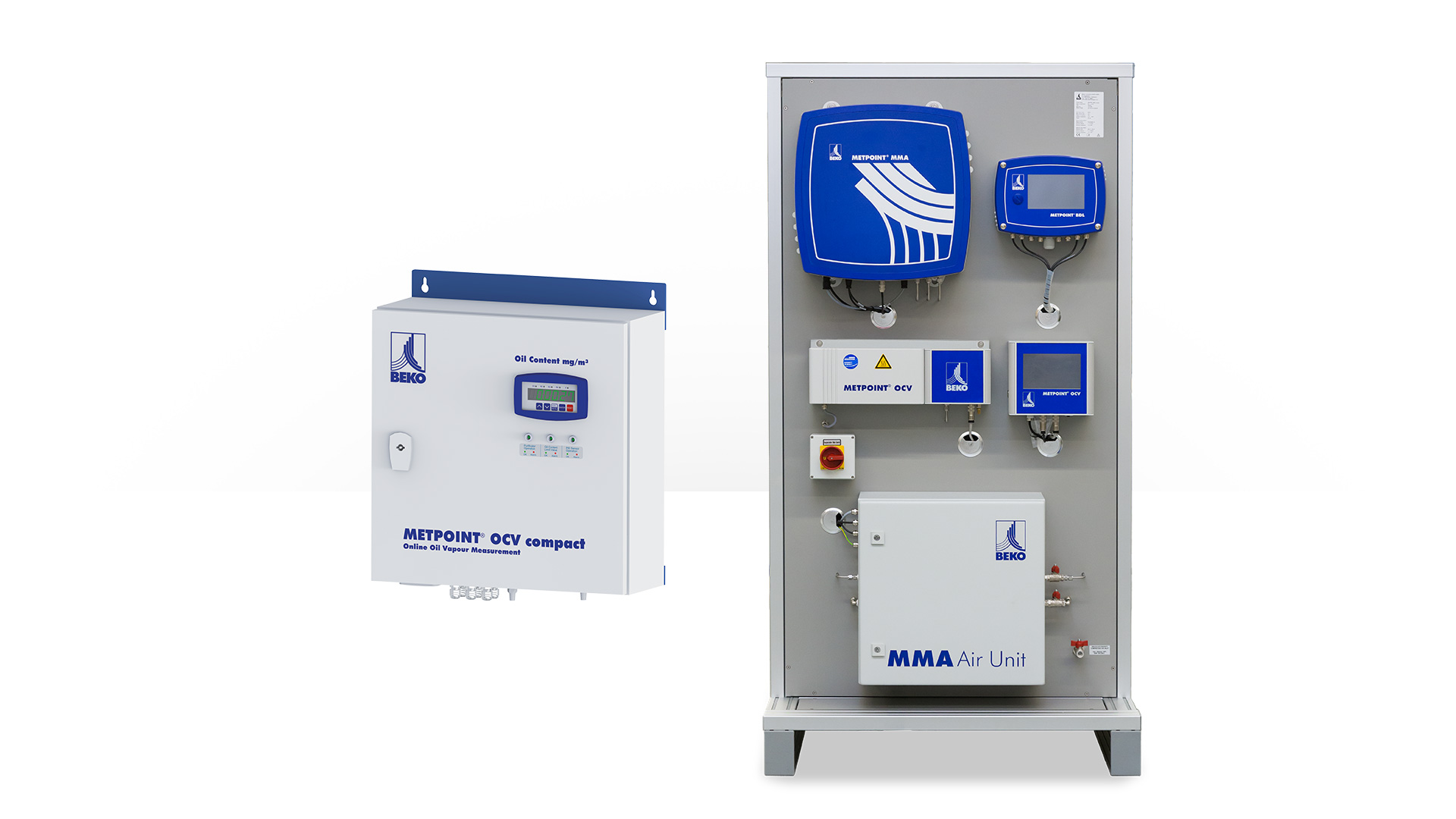

Monitoring teaser
