Condensate and icing up can considerably impair the process safety and economics of compressed air systems. Condensate in the pipework systems, caused by cooling down of the compressed air, leads to increased wear as well as malfunctions and fluctuating product quality. This is where the CLEARPOINT H compressed-air heater comes into its own.
Rapidly relieved compressed air results in expansion cooling. This can lead to icing up of valves and regulating fixtures, which then endanger process safety. Comfort restrictions for respiratory air and dental applications are also possible. CLEARPOINT® H compressed-air heaters warm up the compressed air to the temperatur needed by the application. Temeprature is adjustable form +30 to + 60 °C, thus allowing best operating conditions at the the final point of use.

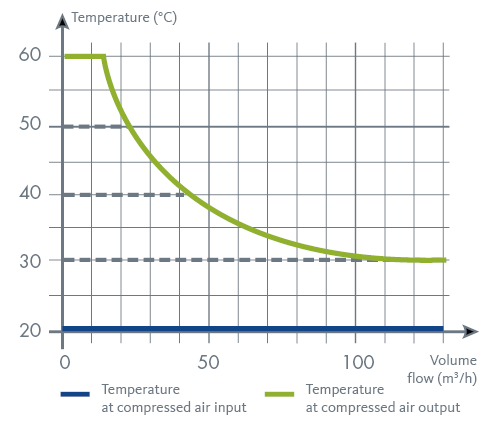

Temperature at the compressed air outlet depending on the volume flow at +20 °C inlet temperature.
At other input temperatures, the curve shifts analogously. The maximum outlet temperature is limited to 60 ° C.
- Protection for compressed air consumers by reducing the relative humidity
- Accelerates manufacturing processes by warming up the compressed air
- High functional and operational safety due to encapsulated, corrosion-free stainless steel heating cartridge
|Maximum operating pressure||16 bar [ ü ]|
|Volume flow at 7 bar||max. 50 m³/h (S040TWC) max. 100 m³/h (S050TWC)|
|Differential pressure||S040 bei 50 m³/h: <0,15 bar S050 at 100 m³/h: <0,2 bar|
|Inlet temperature / ambient temperature||+2 ... +50 °C|
|Compressed air outlet temperature||Adjustable from +30 to +60 °C|
|Internal safety switch off temperature||+84 °C|
|Maximum housing temperature||+80 °C|
