The efficient concept for compressed air filtration
Compressed air must be freed of aerosols, oil and particles before it enters your application. The contamination resulting from the ambient air and compressor operation can damage your production equipment and / or contaminate your final product. CLEARPOINT compressed air filters ensure the purity of your compressed air – safely and efficiently.
80 % of the life-cycle costs for a compressed air plant result from operating costs. The energy costs for the compressor are also a considerable factor. To keep these operating costs as low as possible, the differential pressure of the components of the compressed air preparation must be as low as possible. An appropriate compressed air filtration creates increased energy saving potential in this area.
Which filters do I need depending on the class?
For liquid and solid separation for non-critical applications you need class 4.-.4, for this you combine water separator W and coarse filter C. For general separation of condensate and particles in front of dryers, valves, fittings and tools you need class 2.-.2 and combine a fine filter F in addition to the water separator and coarse filter. For reliable separation of condensate, oil aerosols and particles, for demanding applications with high requirements, you need class 1.-.2. and combine it with a fine filter S. For oil- and odour-free air of class 1.-.1, you also need activated carbon filters A/V, dust filters RS and, if contamination by microorganisms, bacteria, viruses must be removed, sterile filters SR.
What are the advantages of CLEARPOINT eco filter elements? Low operating costs, long service life, high process reliability and versatility are just some of the many advantages of our filters. The filter elements have been validated by an independent institute according to ISO 12500 - with excellent results in terms of efficiency and differential pressure.
![[Translate to United Kingdom:] Filtration and quality classes](/fileadmin/_processed_/c/0/csm_filterklassen_pano_en2_667188d367.jpg)
Optimised, efficient, validated: CLEARPOINT® compressed air filter up to 50 bar
Lower operating costs, longer service lives, higher process reliability and versatile usability - just a few of the many advantages of our CLEARPOINT filter. Depending on the specification of the system, the particularly robust housings in thread or flange versions are available. Irrespective of whether aerosols or solid particles, dust, steam and odours or water: the CLEARPOINT 3eco filter elements are optimized in material and concept so that they safely remove all unwanted components from the compressed air. This therefore means that all quality classes can be achieved and you always have the required compressed air quality available for the respective application.

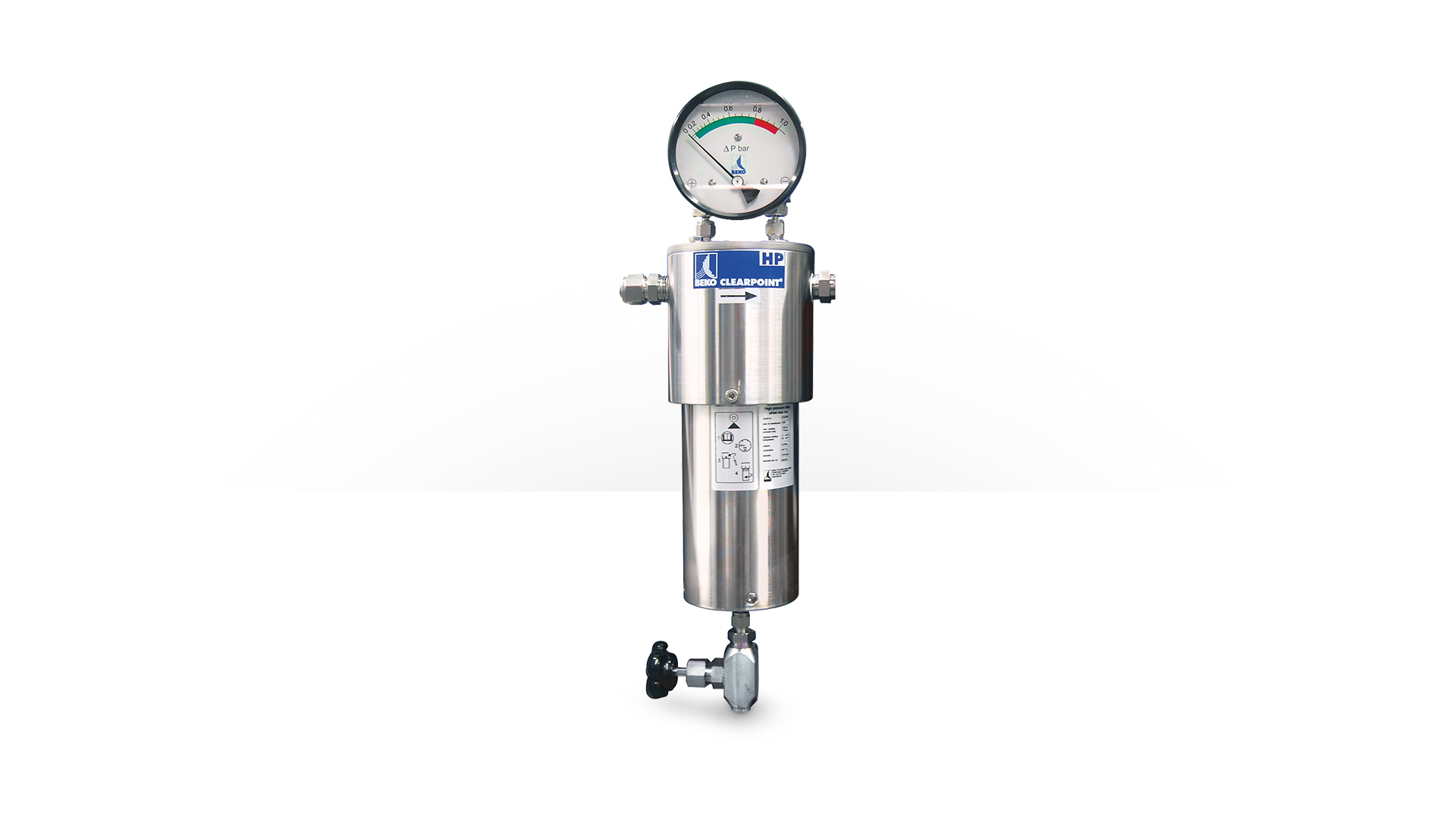

CLEARPOINT® high pressure filter
CLEARPOINT high-pressure filters improve safety and performance capabilities sustainably. The construction, with the robust stainless steel housing and the high temperature resistance, is especially designed for the special challenges in high-pressure systems.
Highest water separator rates: with CLEARPOINT® W
The formation of condensate in compressed air systems is unavoidable - but the cost-causing consequences are unfortunately not: achieve maximum separation rates at minimum cost with the CLEARPOINT W water separator at applications in after coolers and refrigeration dryers.

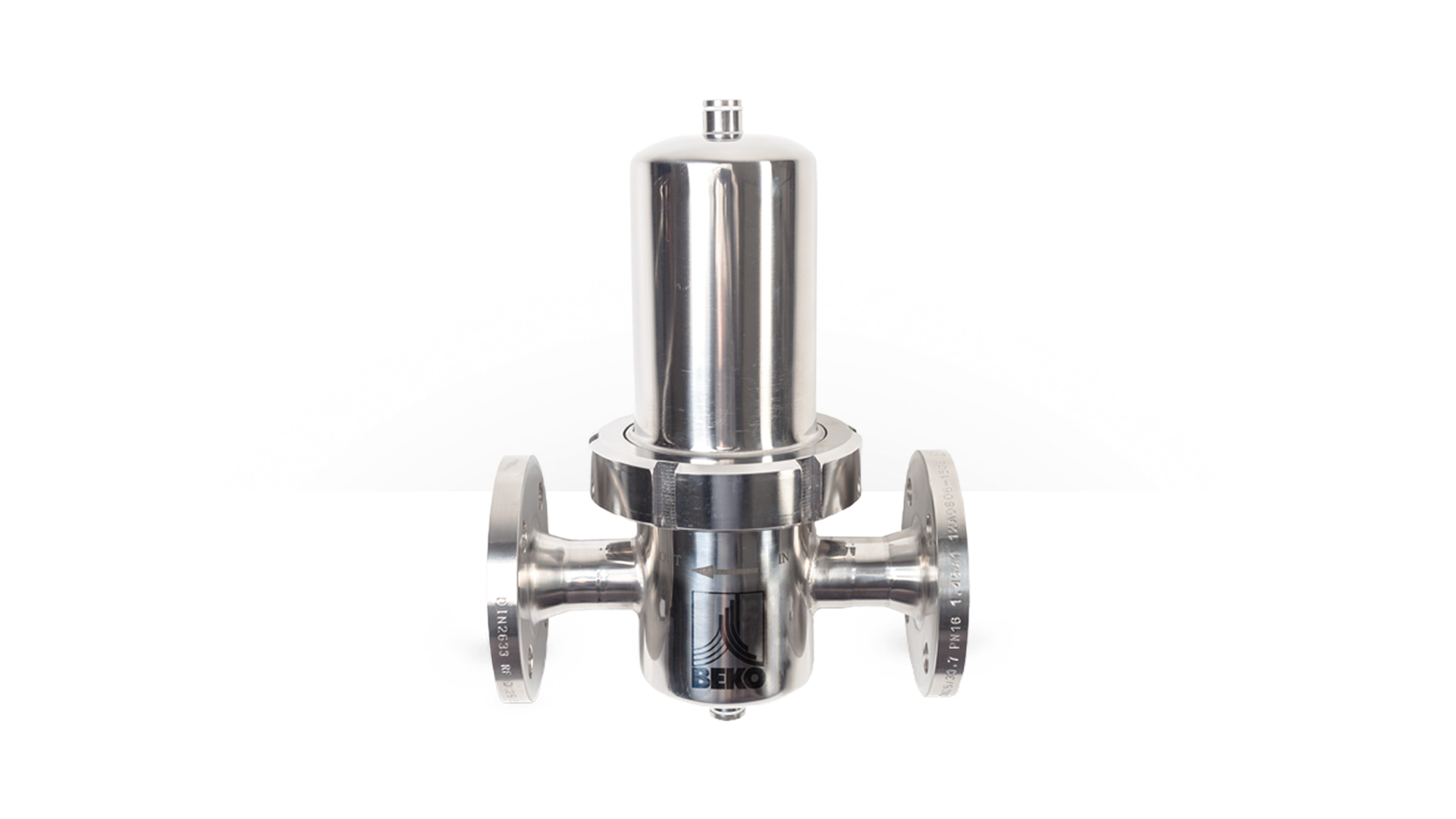

CLEARPOINT® sterile and steam filters
Particularly when compressed air comes in contact with food or pharmaceuticals, our CLEARPOINT sterile and steam filters are perfectly suited for the application. They are characterised by their high flow volume rate and the thereby resulting minimum pressure difference.

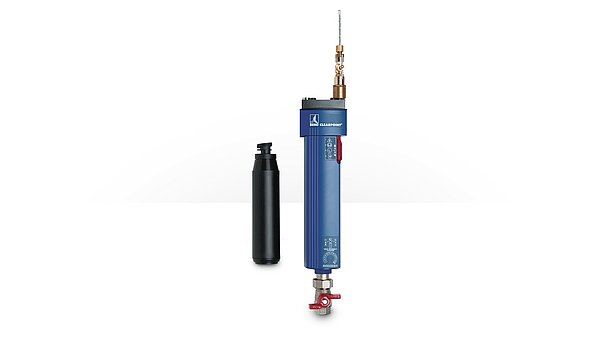

CLEARPOINT® A/V filtration with activated carbon
Highly efficient adsorption with residual oil content below 0.003 mg/m³. Activated carbon filter with cartridge for smaller volume flows. Activated carbon adsorber for larger volume flows as a complete solution with oil-free dust filter.
